Product Introduction
Sucetong HSJ-KS01 series is fast and efficient, and occupies a small area. The system operation is simple and clear, easy to learn and understand, make full use of the generated information resources, reduce the workload of information entry, and reduce the labor intensity of operators.

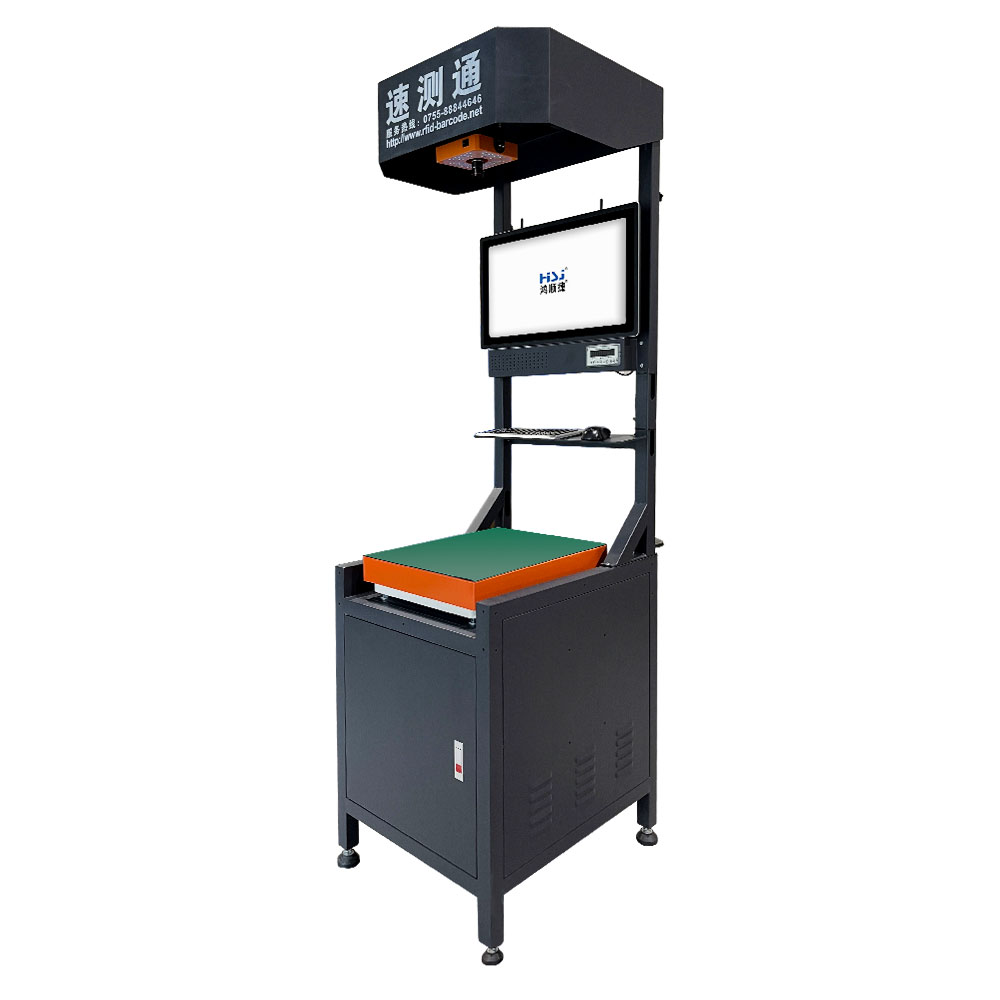

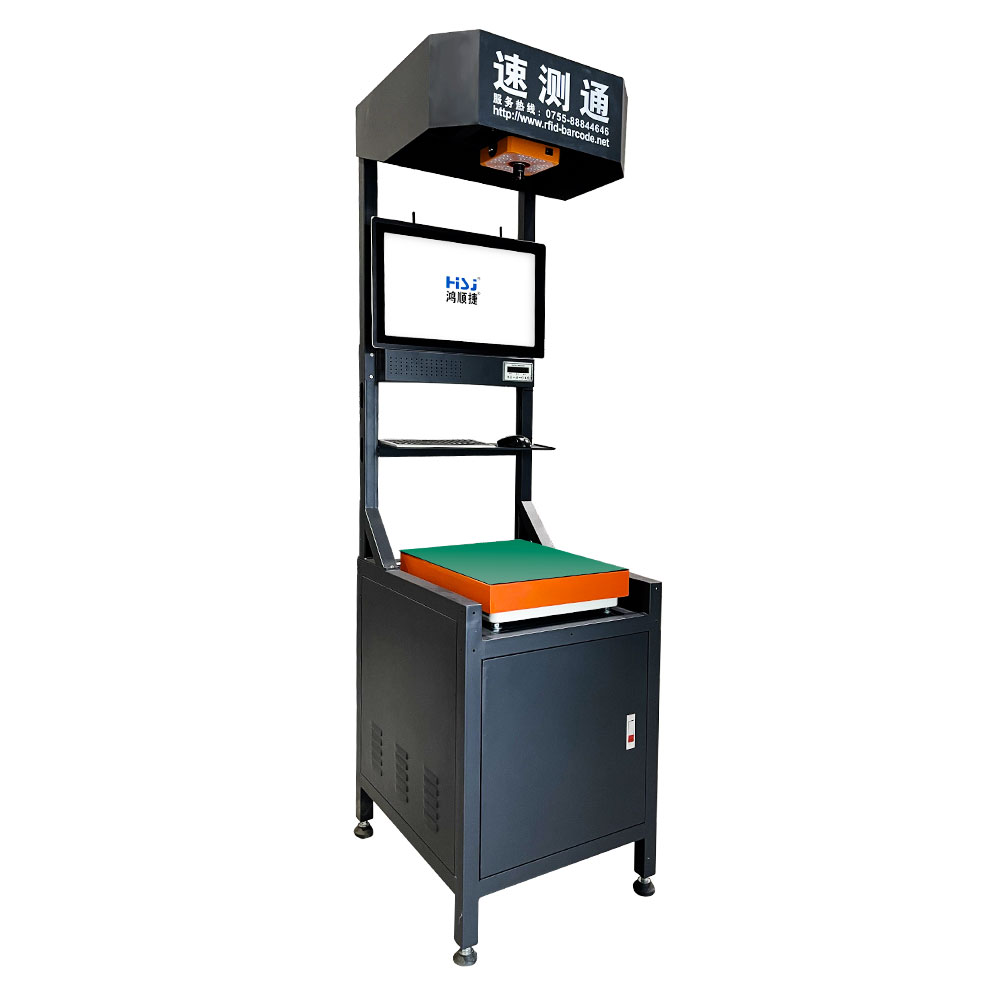

Sucetong KS-01 desktop automatic scanning code weighing system adopts Hikvision industrial code scanning camera and industrial pressure sensor. The weighing is stable, reliable and accurate. It can realize functions such as bar code scanning, weighing, and system data uploading. Small and powerful, it is the right-hand man for logistics e-commerce enterprises to sort out the warehouse!
Scanning in seconds, accurate and efficient, with an average measurement accuracy of +-1g, and sorting efficiency of 800-1800 pieces/hour
Product Features
Function customization and features
Function customization:
According to your needs, you can customize functions such as high-definition pictures, barcode visualization, picture naming, object shape classification, and condition restrictions.
Features:
The data can be stored immediately after the measurement, and the data can be exported at any time, accurate to any time; it is suitable for the measurement of small and medium-sized products, regular/irregular, the workbench can be placed arbitrarily, and can be used in scenarios such as logistics sorting and factory manufacturing lines.
Product composition:
Integrated welding frame, varnished sheet metal panel, smart scan code camera, weighing system (weighing sensor, meter, power adapter), integrated industrial control host (TPC6000).

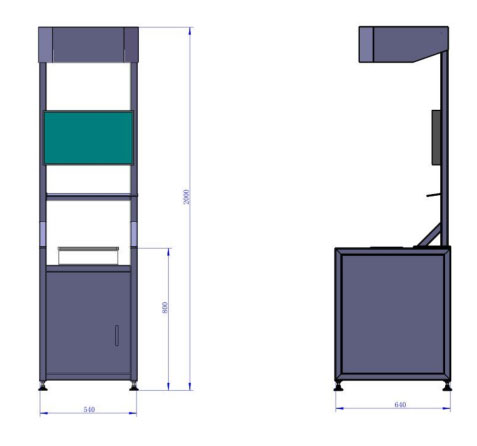

Structure size (can be customized):
Product parameters
| Device name | Sucetong-HSJ-KS01 |
| Scanning equipment | Hikvision Smart Camera |
| Measurement principle | Scan code weighing measurement |
| Measure size | Maximum 400*380*300MM Minimum 100*100*10MM |
| Equipment size | 650MM*550MM*2100MM |
| Weight accuracy | ±1g |
| Measuring speed | 800-1800 pieces/Hour |
| Data output | Excel/Http/Websocket,Serial port optional |
| Machine power | 220V 500W |
| Measure weight | 5g~6000g |
| Scan code | Handheld Scanner/Industrial Camera (MV-PD010003)【Interface RS232】 |
| Package type | Regular/Irregular/Shaped/Thin |
| Placement requirements | Arbitrary placement |
| Super thin object | Support thin parts measurement |
| Supported formats | Data upload, photo storage, system docking, barcode filtering, abnormal handling of super long pieces, network transmission |
| Tape removal | Support |
| System Support | Windows10 |
| Temperature and humidity | -5~40℃ / 0-80% |
| Multi-language | Support multi-language |
After-sales service
| Honorary customer | China Post, Disifang, Yuntu Logistics, Yanwen Logistics, Diyi Express, SF Express, etc. |
| Delivery period | About 15 working days for equipment production + software debugging (excluding shipping time and time required for custom hardware) |
| Warranty time | 1. If the main unit of the product has a performance failure due to non-human damage, seven-day free return, replacement, and warranty; 15-day free replacement and warranty; one-year warranty; 2. The product software has a performance failure due to non-human damage, and the product will be delivered for free within one year. Update the product system software; 3. Within the scope of the warranty, if the whole machine is replaced (excluding accessories), the warranty period of the replaced product will be recalculated according to the Three Guarantees Law; 4. Gifts and accessories do not participate in the warranty; |
| After-sale warranty | If the customer finds a problem, the on-site personnel can feedback the problem to the person in charge of the project in the computer department, and then the person in charge will contact our technical staff. We will give you a reply within four hours and deal with it within 48 hours (48 hours is in Shenzhen. In the urban area, other areas will be processed within 54 hours) Open 24-hour after-sales service hotline: +86-13316986889 |
