Product Introduction
Sucetong DWS series automatic weighing and measuring volume sorting system integrates barcode, weight and volume information automatic collection and input system, and prints face sheets in real time with printer.
Fast speed and high efficiency, the system operation is simple and clear, easy to learn and understand, make full use of the information resources that have been generated, reduce the workload of information entry, and reduce the labor intensity of operators.
HSJ-Sucetong DWS01 automatic weighing and measuring equipment, using industrial pressure sensing, stable and reliable data accuracy, can realize the functions of barcode scanning, weighing, volume measurement and data uploading of regular and irregular goods, small footprint, powerful functions, The right-hand man for logistics and e-commerce enterprises in and out of the warehouse!
Second-beat second-stroking, weighing and measuring volume DWS automatic sorting machine, accurate and efficient, with an average measurement accuracy of ±10g, and the sorting efficiency of medium and large parcels reaches 800-1200 pieces/hour

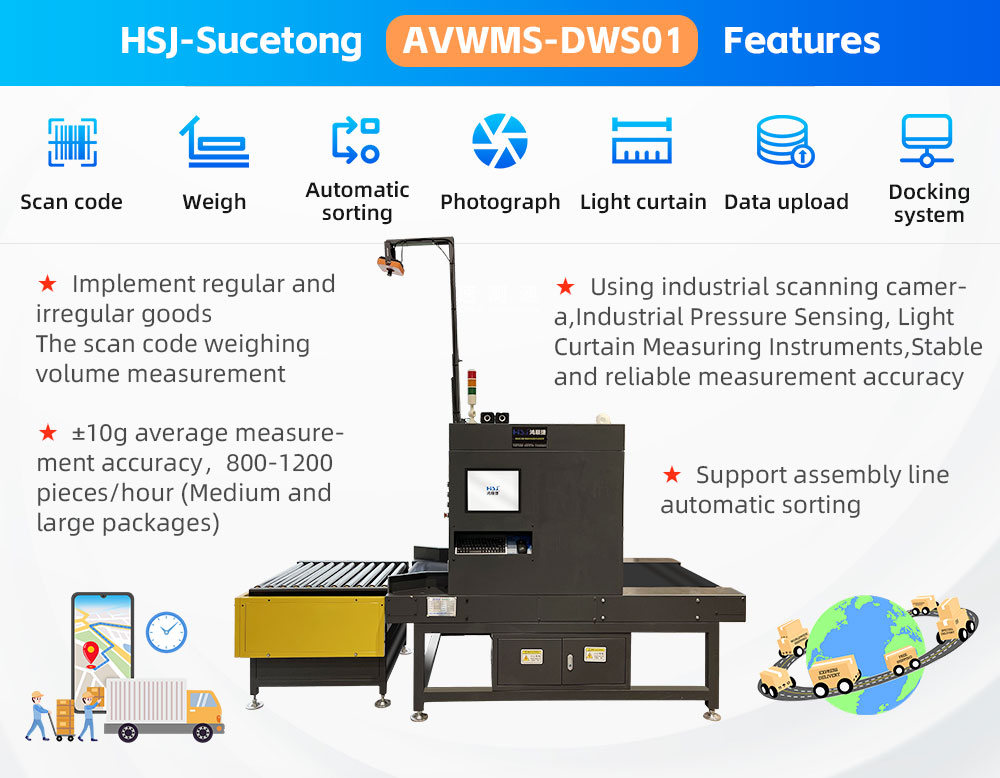

Product Features
Function customization and features
Function customization:
According to your needs, you can customize functions such as high-definition pictures, barcode visualization, picture naming, object shape classification, and condition restrictions.
Features:
Sucetong AVWMS-DWS01 automatic weighing and measuring equipment, the data can be stored immediately after measurement, and the data can be exported at any time, accurate to any time; suitable for the measurement of small and medium-sized products, regular/irregular, the workbench can be placed arbitrarily, and can be used for logistics distribution Scenarios such as picking and factory manufacturing lines.
Product composition:
One set of TPC6000 all-in-one industrial control host with mouse/keyboard/power adapter) plus one monitor, two sets of Hikvision smart cameras, weighing system (one static scale/meter), one set of fully enclosed sheet metal structure, PLC electronic control system One set, one wireless handheld code scanning gun, two sets of infrared measuring light curtains.

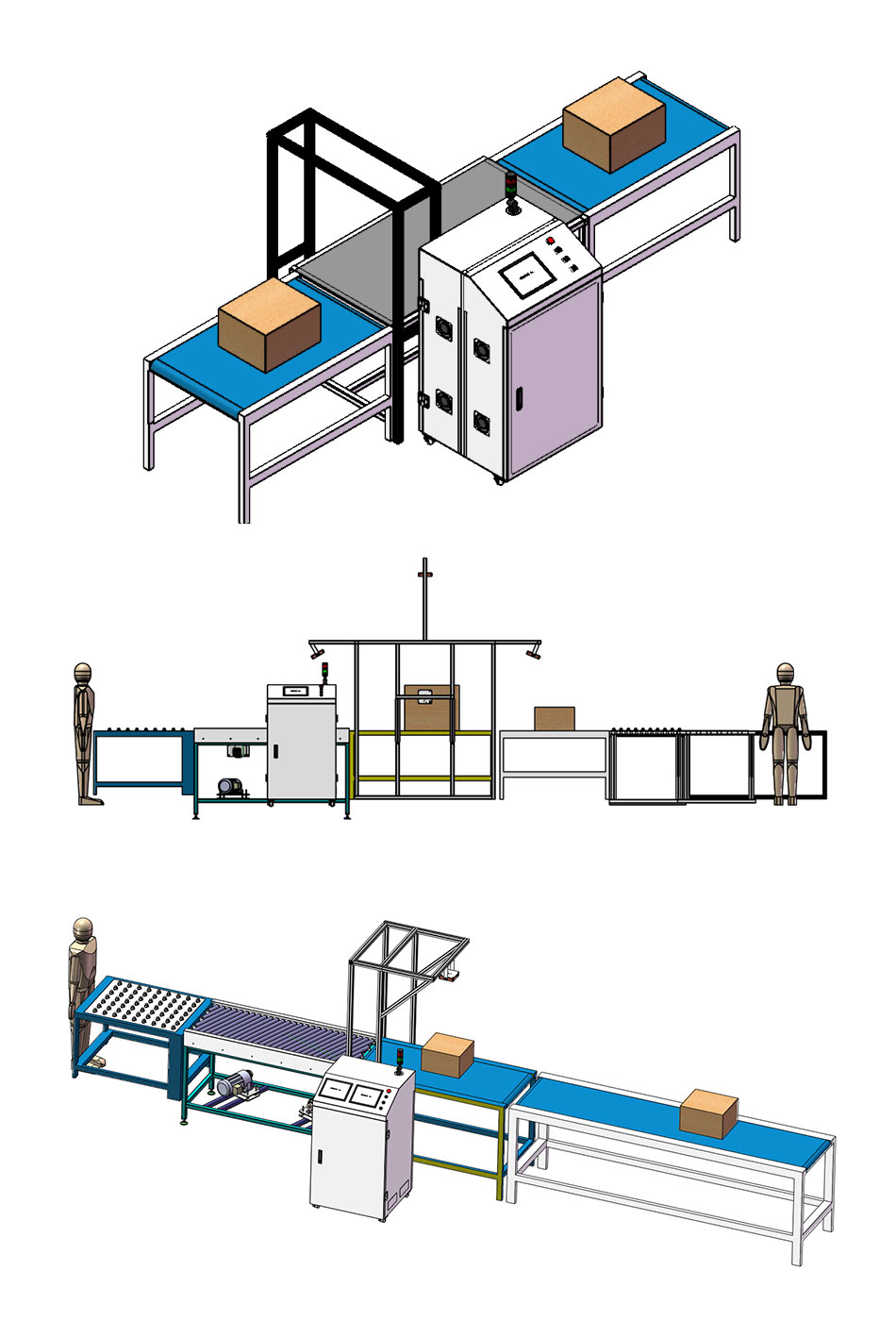

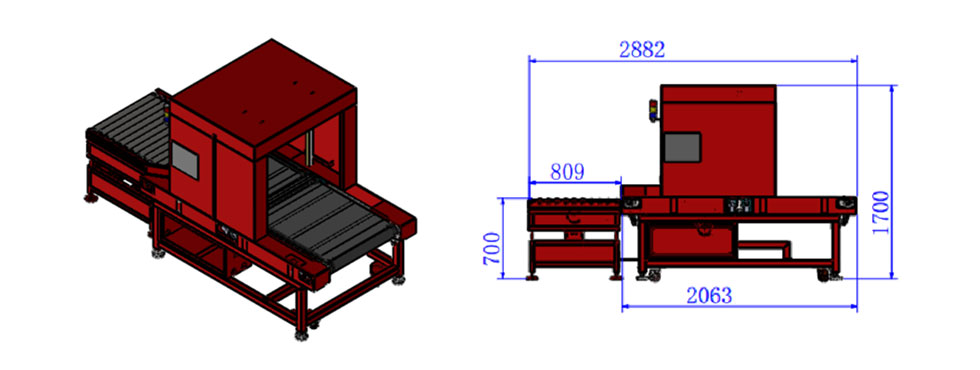

Structure size (can be customized):
Product parameters
| Device name | HSJ-Sucetong-AVWMS-DWS01 |
| Scanning equipment | Industrial Smart Camera |
| Measurement principle | Light curtain measurement |
| Measure size | Maximum 1000*800*800MM Minimum 300*300*100MM |
| Equipment size | 2900MM*1200MM*2800MM |
| Weight accuracy | ±10g |
| Volumetric accuracy | ±5MM |
| Measuring speed | 600-1000 pieces/hour |
| Data output | Excel/Http/Websocket,Serial port optional (interface RS232) |
| Machine power | 220V 1500W |
| Measure weight | 500g~30000g |
| Scan code | Handheld Scanner/Industrial Camera (MV-PD010003) |
| Package type | Regular/Irregular/Shaped/Thin |
| Placement requirements | Arbitrary placement |
| Super thin object | Support thin parts measurement |
| Supported formats | Data upload, photo storage, system docking, barcode filtering, abnormal handling of super long pieces, network transmission |
| Tape removal | Support |
| System Support | Windows10 |
| Working temperature and humidity | -5~40℃ / 0-80% |
| Multi-language | support multi-language |
After-sales service
| Honorary customer | China Post, BYD, YTO Express, Yuntu Logistics, Export Easy Logistics, Yida International Logistics, etc. |
| Delivery period | About 15 working days for equipment production + software debugging (excluding shipping time and time required for custom hardware) |
| Warranty time | 1. If the main unit of the product has a performance failure due to non-human damage, seven-day free return, replacement, and warranty; 15-day free replacement and warranty; one-year warranty; 2. The product software has a performance failure due to non-human damage, and the product will be delivered for free within one year. Update the product system software; 3. Within the scope of the warranty, if the whole machine is replaced (excluding accessories), the warranty period of the replaced product will be recalculated according to the Three Guarantees Law; 4. Gifts and accessories do not participate in the warranty; |
| After-sale warranty | If the customer finds a problem, the on-site personnel can feedback the problem to the person in charge of the project in the computer department, and then the person in charge will contact our technical staff. We will give you a reply within four hours and deal with it within 48 hours (48 hours is in Shenzhen. In the urban area, other areas will be processed within 54 hours) Open 24-hour after-sales service hotline: +86-13316986889 |
