The automatic labeling and labeling system (ALP) adopts the world's top automatic labeling and labeling design method with the design concept of high quality and high performance. Ruifei RFSYS excellent electronic control system, light weight, stable and reliable, durable! It is an excellent high-tech tool and a good partner for industrial automation and logistics automation!
RFSYS110 series automatic labeling and labeling system integrates ZE500 printing engine, integrates a variety of data interface methods, through TCP/IP network port, RS232 serial port, USB port, IEEE1284 parallel port, standard printer driver, can be connected to ERP, WMS, SCM in real time , MES, TMS, CRM and other enterprise management systems, real-time printing of various labels issued by the system, printing and sticking; at the same time, it supports the printing of third-party label editing software such as Bartender, Code soft, Label View, Label matrix, etc. It also supports ZPL, The ZPLII printer has programmable language and printing instructions, which is efficient and fast; the integrated RFSYSV1 human-machine interface, combined with the label detection and tracking system, can clearly know whether each action of the printer is completed and whether there is a shortage of materials. The operation is simple and easy to use.
RFSYS110 series automatic labeling and labeling system is divided into top labeling RFSYS110 and side labeling RFSYSS110. It can be equipped with Zebra original 203dpi, 300dpi, 600dpi high-performance print heads, printing and labeling can be completed within 2 seconds at the fastest, label specifications It can be customized according to requirements, and the labeling adopts RFSYS breathing technology, which can be used in a variety of application environments, and is widely used in industrial manufacturing, cross-border e-commerce, logistics and express delivery and other fields!

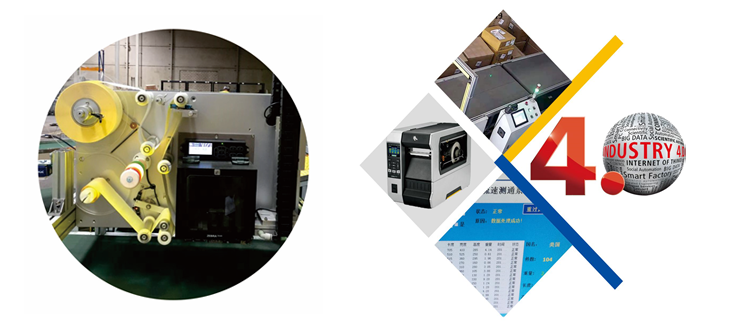

Sucetong RFSYS Printing and Labeling Machine
Application Requirements
a. Instant Print - Instant Label
b. Labeling position: top labeling, side labeling, custom orientation labeling
Special Instructions
1) The ERP system sends the data to the printer, and the printer prints the label after peeling off the label, and the suction cup absorbs the label, and then the air cylinder pushes the suction cup to push the label to the position to be attached.
2) The arrival of the product is detected, and the label is attached to the product.
Labeling Requirements
1) Make a label, single row, label interval 2-3mm
2) Label and release paper margin: 2-3mm
3) Label backing paper material: Glassine backing paper
4) Label die-cutting accuracy: ±0.2 mm, can not cut the bottom paper
5) Maximum outer diameter of label label: 300 mm
6) Inner diameter of paper core: 76.2mm
Electrical configuration
No. Name Appliance brand
1 Printer Zebra Print Engine
2 Pneumatic components Festool
3 PLC Panasonic
4 Product testing Leuze
5 Solenoid valve Festool
6 touch screen display control
7 Relay Omron
8 I/O board Independent research and development
Technical parameter
Speed test pass automatic labeling and labeling machine parameters:
Printer Model: A110/ T110/S110
Print parameters
Printing method: thermal transfer/thermal
Print Resolution: 300dpi
Printing speed: 254mm/s
Printing Range: Width 104mm; Length 300mm
Media parameters
Induction mode: gap induction (through type), reflection type
Media Type: Coated, Synthetic, Glassindy
Paper roll size: label core inner diameter Φ76.2mm outer diameter 300mm
Media size: width 25.4-116mm; thickness 0.06-0.30mm
Ribbon parameters
Ribbon: width 25-107mm; length 600 meters, maximum outer diameter 90mm, when winding the ribbon, the coated side faces outward
Communication Interface
External interface: R232 serial port / Parallel parallel port / USB2.0 / network port
Barcode Type
One-dimensional code: Code39,Code93,Code128UCC,Code128subsetsA.B.C,Codabar,EAN-8
QR code: PDF-417, Maxicode, DataMatrix, QR Code, Aztec
External hardware
Font panel: touch screen operation
Alarm settings: three-stage alarm, lack of label alarm, lack of ribbon alarm, sensor failure alarm
Pneumatic part: FESTO pneumatic components
Dimensions: 820×670×1600mm (according to the specific machine size)
Weight: 100KG
Labeling parameters:
Labeling speed: 5-30/min
Labeling accuracy: ±2mm
Label width: 104mm
Label length: 10-300mm
Labeling part: plane / side
Print content: text, serial number, date, pattern, one (two-dimensional) barcode and other identifications.
Support: UHF RFID self-adhesive label
Remarks: The product printer is a professional printing engine imported from Zebra Industry from the United States.
Features
1) The machine PLC controls the printer, the touch screen operation interface, the operation interface is optimized, and it is simple and easy to understand.
2) ERP transmits data and completes label production.
3) The product is detected by the sensor, the signal is processed by the PLC, and the labeling position can be modified by setting parameters before and after.
4) Parameter setting, labeling speed and labeling count are clear at a glance.
